Overview

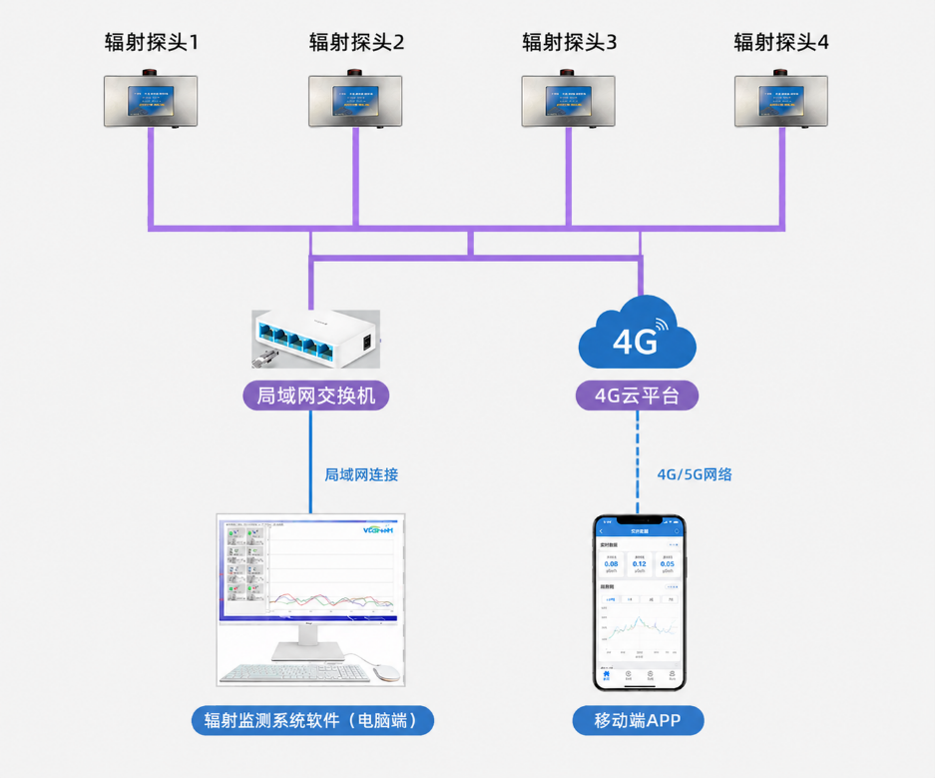

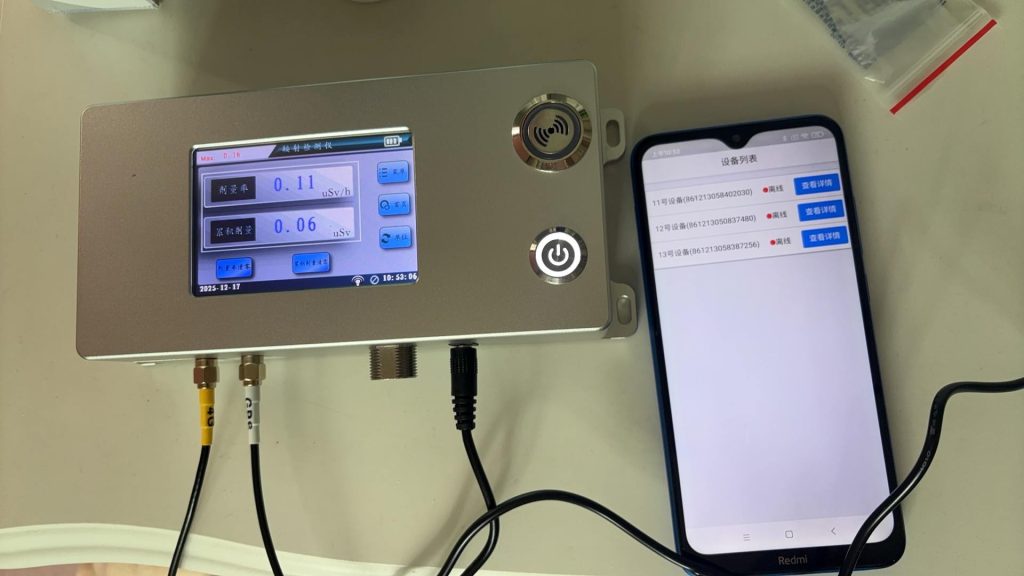

The YD-880 Environmental X/Gamma Radiation Monitoring System employs an energy-compensated GM counter (or scintillator) as its radiation sensor, delivering high sensitivity and excellent measurement stability for precise γ-ray and X-ray detection. It integrates a high-speed microprocessor with a 3.5-inch color touchscreen LCD, enabling streamlined and user-friendly operation. A built-in TCP/IP Ethernet communication port allows the system to be easily configured as an independent local area network or connected to a cloud platform for remote data management.
Features
- High-performance embedded microprocessor delivers real-time responsiveness for monitoring data and system status;
- 3.5-inch color touchscreen LCD (customizable to 7-inch, 8-inch, or other sizes upon request) with an intuitive operator interface, designed for rapid familiarization and effortless handling;
- Built-in TCP/IP Ethernet port supporting 10/100 Mbps transmission rates, simplifying network integration and multi-unit deployment;
- Automatic accumulated dose recording with non-volatile onboard storage — data preserved during power outages; alarm logs accessible for manual review;
- User-definable alarm setpoints for both dose rate and accumulated dose;

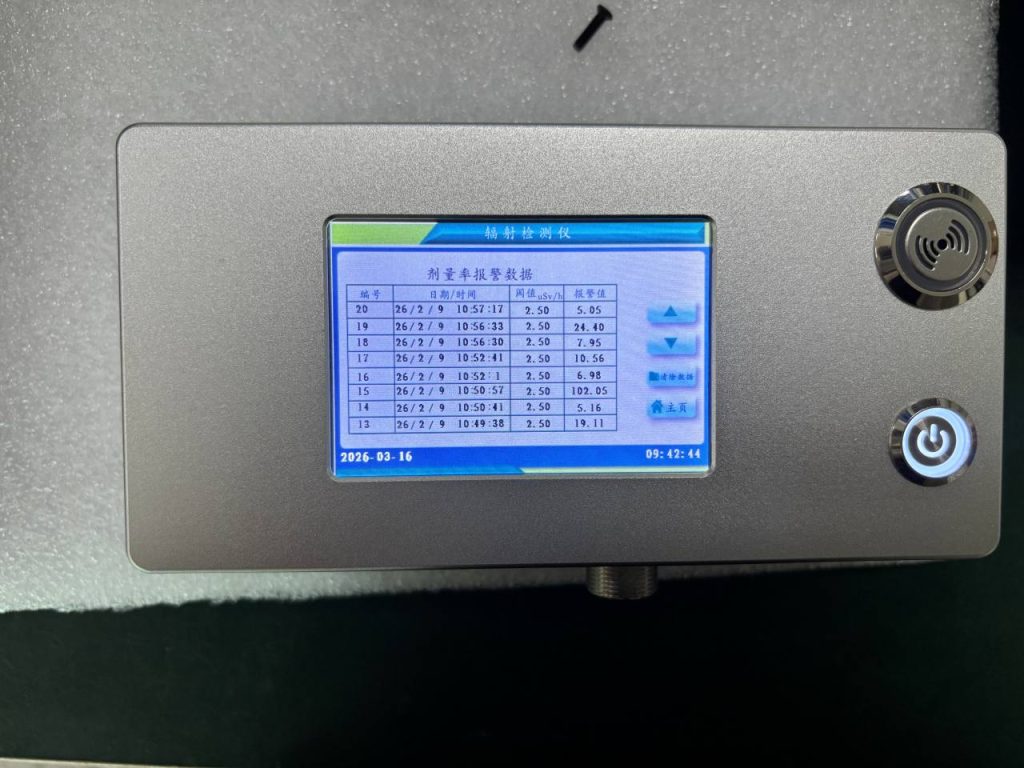

- Detector unit stores up to 4,000 alarm data records;
- Over-threshold audible alarm, short dead time, and robust performance under high dose rate conditions;
- Onboard real-time clock displaying year, month, and date; clock operation unaffected by power interruption.
Applications
Suited for X and γ radiation environment monitoring and radiological protection surveys across a broad range of sectors, including: medical facilities, CDC, environmental protection agencies, metallurgy, petroleum and petrochemical, chemical industry, radiological laboratories, industrial NDT radiography, radiation processing, mining operations, and other settings where radiation surveillance is mandated.
GM Radiation Detector Specifications
| Parameter | Specification |
|---|---|
| Detector | Metal GM counter |
| Energy Response | 50 keV ~ 5 MeV |
| Detectable Radiation | X-rays, γ-rays, and hard β |
| Measurement Range | Dose rate: 0.05 µSv/h ~ 1 mSv/h (optional 0.1 µSv/h ~ 50 mSv/h); Accumulated dose: 0 ~ 9999 mSv |

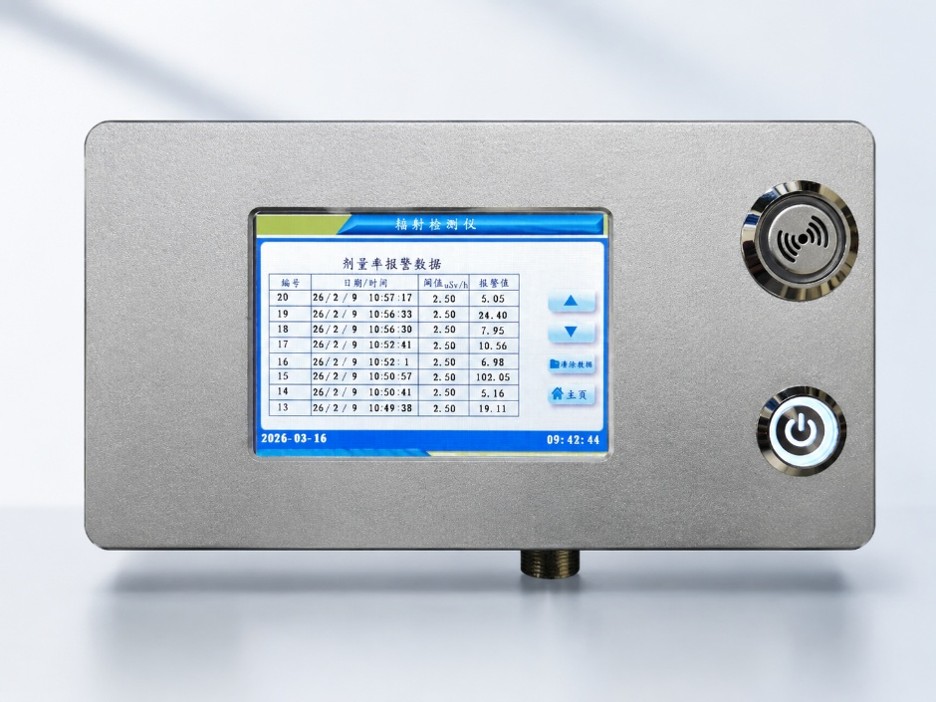

| Display | 3.5-inch color touchscreen LCD; wall-mounted |
| Sensitivity | >5 CPS at 1 µSv/h (referenced to ¹³⁷Cs) |
| Relative Intrinsic Error | ≤ ±10% (¹³⁷Cs, at 200 µSv/h) |
| Response Time | ≤ 2 s |
| Operating Environment | Temperature: −10°C to +50°C; Relative humidity: ≤95% (at 40°C) |
| Power Supply | AC mains, 220 V |
| Housing | Full aluminium alloy construction |
| Weight & Dimensions | Approx. 500 g; 153 × 86 × 63 mm (excl. mounting holes) |
Scintillation Detector Specifications
| Parameter | Specification |
|---|---|
| Detector | Scintillator + SiPM (Silicon Photomultiplier) |
| Energy Response | 38 keV ~ 7 MeV |
| Detectable Radiation | X-rays, γ-rays |
| Measurement Range | Dose rate: 0.01 µSv/h ~ 10 mSv/h; Accumulated dose: 0 ~ 9999 mSv |
| Display | 3.5-inch color touchscreen LCD; wall-mounted |
| Sensitivity | >50 CPS at 1 µSv/h (referenced to ¹³⁷Cs) |
| Relative Intrinsic Error | ≤ ±10% (¹³⁷Cs, at 100 µSv/h) |
| Response Time | 1 s |
| Refresh Rate | 1 reading per second |
| Operating Environment | Temperature: −10°C to +50°C; Relative humidity: ≤95% (at 40°C) |
| Power Supply | AC mains, 220 V |
| Weight & Dimensions | Approx. 500 g; 153 × 86 × 63 mm (excl. mounting holes) |
