Overview

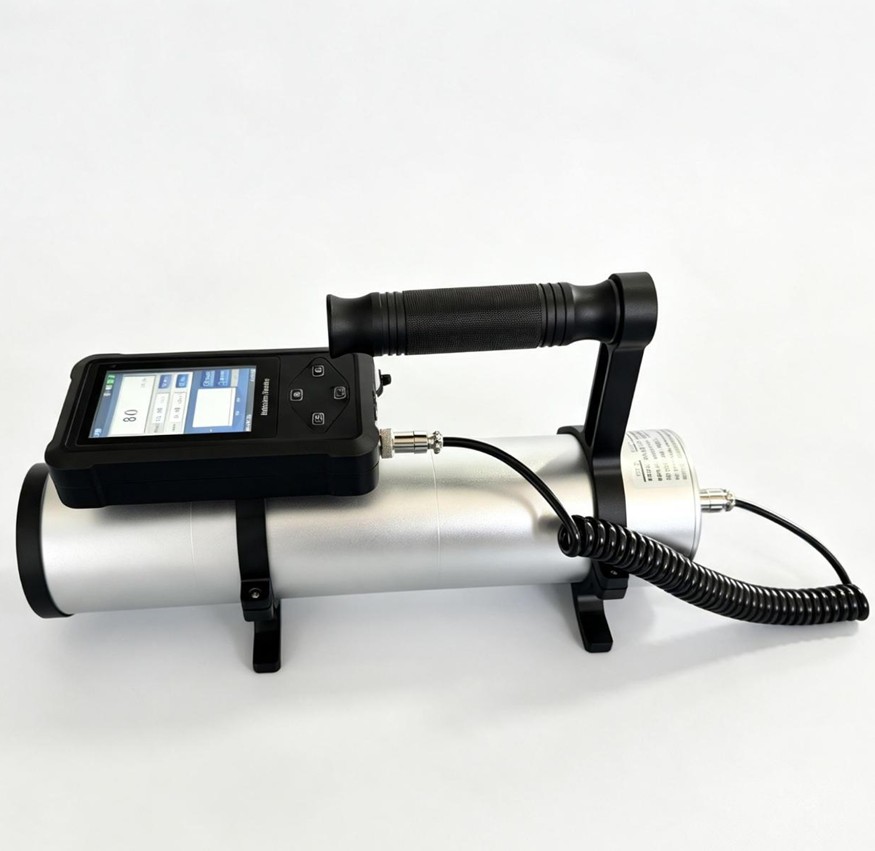

The Model YD-510S Environmental X-γ Radiation Dose Rate Meter employs a plastic scintillation detector, offering fast response, high sensitivity and a wide measurement range, enabling accurate measurement of gamma and X-ray radiation. It features a high-speed microprocessor and a 3.5-inch colour touchscreen LCD display for enhanced ease of operation. The instrument is widely used for monitoring and survey in various X-γ radiation environments, including medical institutions, disease control and prevention (CDC) agencies, environmental protection, metallurgy, petroleum, chemical industry, radiological laboratories, industrial radiography, radiation processing, and mining. It complies with the verification requirements of 《JJG 521-2024 – X,γ air kerma rate meters for environmental monitoring 》and 《JJG 393-2018 – Portable X, gamma ambient dose equivalent (rate) meters and monitors》. Adopting a single-detector configuration, the instrument combines both high sensitivity and a wide dynamic range.
Features
- High-Speed Embedded Microprocessor – Employs a high-speed embedded microprocessor to ensure the timeliness of measurement data and status;
- 3.5-Inch Colour Touchscreen LCD – Featuring a full Chinese/English bilingual operating interface for intuitive and easy operation;
- Automatic Dose Accumulation – Automatically saves accumulated dose with non-volatile storage (data retained upon power loss), allowing manual retrieval of alarm records;
- User-Configurable Alarm Thresholds – Alarm thresholds for both dose rate and accumulated dose are configurable;
- Real-Time 90-Second Dose Rate Trend Display – Displays a real-time graphical interface of dose rate over the preceding 90 seconds;
- 2.4G Bluetooth Data Transmission – Supports 2.4G Bluetooth data transfer;
- Cyclic 30-Second Dose Rate Logging – Supports cyclic recording of 30-second dose rate data, automatically storing the maximum and average values with retrievable records;
- Extensive Alarm Data Storage – Capacity for 1024 alarm records;
- Display Units – μSv/h and μGy/h;
- Real-Time Clock – Integrated real-time clock displaying year, month and date in real time, unaffected by power interruptions.
Applications
- Nuclear power
- Industrial non-destructive testing (NDT) and radiation processing
- Radioactive waste repositories
- Disease control and prevention (CDC) and environmental protection
- Hospital X-ray diagnostics and cobalt therapy
- Metallurgy, petroleum and chemical industry
Specifications
| Parameter | Specification |
|---|---|
| Detector | 3×3-inch plastic scintillator + photomultiplier |
| Energy Response Range | 30 keV – 7 MeV |
| Detectable Radiation Types | X-γ |
| Measurement Range – Dose Rate | 10 nSv/h – 150 mSv/h |
| Accumulated Dose | 0 – 9999 mSv |
| Display | 3.5-inch colour touchscreen LCD |
| Sensitivity | > 1500 cps/(μSv/h) |
| Relative Intrinsic Error | ≤ ±10% (¹³⁷Cs, 100 μSv/h) |
| Response Time | 1 s |
| Operating Environment | Temperature: −25 °C to +50 °C; relative humidity ≤ 95% (at 40 °C) |
| Power Supply | 7.4 V rechargeable lithium battery, with real-time battery voltage monitoring and a flashing battery icon to indicate low voltage |
| Housing | All-metal construction, robust and durable overall structure |
| Weight & Dimensions | Approx. 2.25 kg (including battery); main unit: 152 × 85 × 34 mm; detector probe: φ82 × 355 mm (excluding bracket) |
